TEXGRID® CV 150 GIRO
For reinforcement and against longitudinal, transverse and tangential cracking.
Features:
- 100% carbon quadriaxial geogrid.
- The TEXGRID® CV 150 GIRO solution was specially designed for reinforcing roundabouts (or small radius bends) and bus stops in bathtubs.
- This solution, developed by our engineers and technicians, remains the very essence of Texum's expertise. The homogeneous reinforcement of the structure, combined with the ability to prevent cracks from damaging the wearing surface, enables this system to withstand the specific stresses encountered in non-rectilinear pavements.
- Full-surface application.
- Bonding with a SAMI.
Composition & application

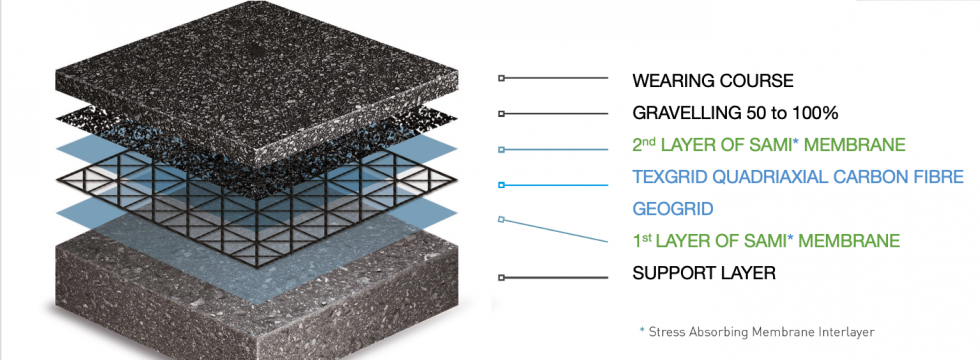

TEXGRID® CV 150 GIRO solution consists of a SAMI membrane reinforced with a quadriaxial carbon fiber geogrid.
The use of this structure, which combines - in a multidirectional manner - the rigidity of carbon with the elasticity of the SAMI membrane's modified bitumen, makes it possible to respond to the specific constraints encountered in traffic circles.
In addition to its mechanical properties, its installation - ensured by the expertise of our specially trained partners - is a key factor in the performance of this solution.
The TEXGRID® CV 150 GIRO solution in video

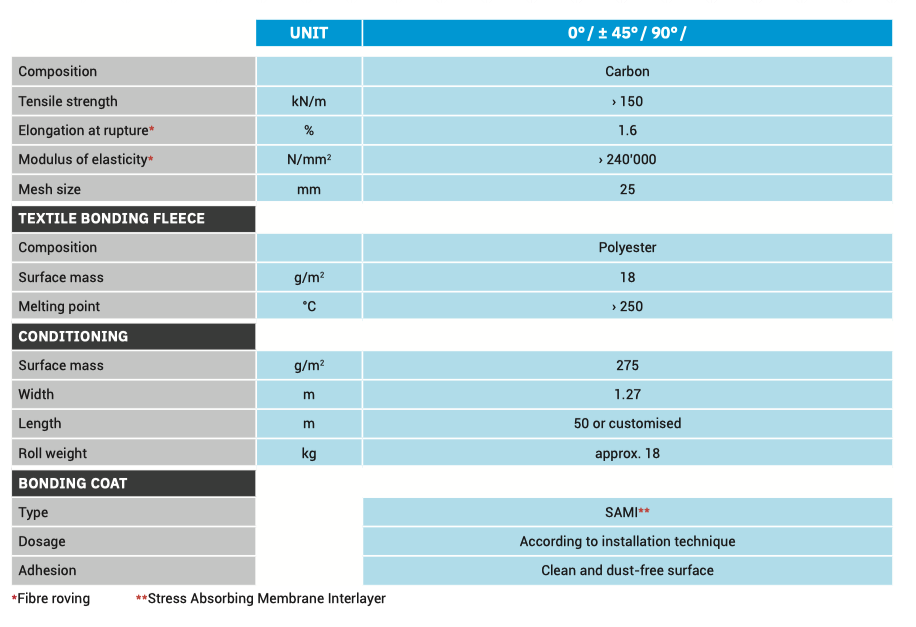

Technical data
Technical data
You'll find all the information you need about TEXGRID® CV 150 GIRO solution in its data sheet.
If you wish, you can also obtain the data sheets for our other solutions.
High-performance speed of execution
Applying TEXGRID® CV 150 GIRO remains the fastest solution for reinforcing roundabouts.
Although the surface intervention (3 to 4 cm deep) is a significant factor in this calculation, the application of geogrids on a SAMI membrane is also a source of speed and flexibility in site management, thus optimizing installation yields.
Together for your project
Because every project is a unique challenge, innovation, performance and assistance are at the heart of our business.
Contact us, and we'll be happy to advise you and direct you towards the solution best suited to your project.
Technical brochure
Would you like to learn more about TEXGRID® CV 150 GIRO solution in a technical brochure?
