Laminates SLX

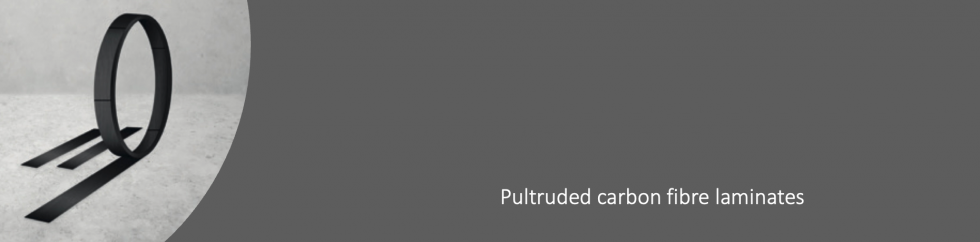

Bonded CFRP laminates to reinforce existing structures
- Extends the service life of structures
- Simple, cost-effective solution
- Wide range of applications
- Minimal intervention on existing structures
Modulus of elasticity: 210 kN / mm2
Denomination of laminates
Laminates glued on the surface
| Type | Width (mm) | Thickness (mm) | Section (mm2) | Fmax at 0.6% (kN) | Fmax at 0.8% (kN) |
| SLX 50-1.4 | 50 | 1.4 | 70 | 87.5 | 115.5 |
| SLX 60-1.4 | 60 | 1.4 | 84 | 105.0 | 138.8 |
| SLX 80-1.4 | 80 | 1.4 | 112 | 140.0 | 184.8 |
| SLX 90-1.4 | 90 | 1.4 | 126 | 157.7 | 207.9 |
| SLX 100-1.4 | 100 | 1.4 | 140 | 175.0 | 231.0 |
| SLX 120-1.4 | 120 | 1.4 | 168 | 210.0 | 272.2 |
| SLX 150-1.4 | 150 | 1.4 | 210 | 262.5 | 340.2 |
Technical characteristics
| Average value of the modulus of elasticity in the longitudinal direction of the fibres in accordance with standard EN 2561 | 210 kN/mm2 |
| Minimum value of the modulus of elasticity in the longitudinal direction of the fibres in accordance with standard EN 2561 | ≥ 200 kN/mm2 |
| Tensile strength in the longitudinal direction of the fibres in accordance with standard EN 2561 | ≥ 2'900 N/mm2 |
| Average tensile strength value according to EN 2561 | 3'200 N/mm2 |
| Elongation at break in accordance with standard EN 2561 | ≥ 1,35% |
| Laminate width tolerance | - 1,5 / + 1,5 mm |
| Laminate thickness tolerance | - 0,03 / + 0,1 mm |
| Glass transition temperature in accordance with EN 61006 | ≥ 100°C |
| Density | 1'600 kg/m3 |
| Volumetric percentage of fibres | > 68% |
Advantages
- Control of reinforcement sizing
- Very low dead weight
- No corrosion
- Excellent fatigue behaviour
- Small footprint
Technical data
Find all the information about the Strong-Laminates solution in its technical data sheet.
If you wish, you can also download the technical data sheets for our solutions.
Get the technical data sheet
