Laminates SL
Bonded CFRP laminates to reinforce existing structures
- Extends the service life of structures
- Simple, cost-effective solution
- Wide range of applications
- Minimal intervention on existing structures
Modulus of elasticity: 170 kN / mm2
Designation of laminates
Lamellas glued to the surface
| Type | Width (mm) | Thickness (mm) | Section (mm2) | Fmax at 0.6% (kN) | Fmax at 0.8% (kN) |
| SL 50-1.2 | 50 | 1.2 | 60 | 60.0 | 78.0 |
| SL 50-1.4 | 50 | 1.4 | 70 | 70.0 | 91.0 |
| SL 60-1.4 | 60 | 1.4 | 84 | 84.0 | 109.2 |
| SL 60-2.6 | 60 | 2.6 | 156 | 156.0 | 202.8 |
| SL 80-1.2 | 80 | 1.2 | 96 | 96.0 | 124.8 |
| SL 80-1.4 | 80 | 1.4 | 112 | 112.0 | 145.6 |
| SL 90-1.4 | 90 | 1.4 | 126 | 126.0 | 163.8 |
| SL 100-1.2 | 100 | 1.2 | 120 | 120.0 | 156.0 |
| SL 100-1.4 | 100 | 1.4 | 140 | 140.0 | 182.0 |
| SL 120-1.4 | 120 | 1.4 | 168 | 168.0 | 218.4 |
| SL 150-1.2 | 150 | 1.2 | 180 | 180.0 | 234.0 |
| SL 150-1.4 | 150 | 1.4 | 210 | 210.0 | 273.0 |
Incorporated laminates
| Type | Width (mm) | Thickness (mm) | Section (mm2) | F |
| SL 10-3.0 | 10 | 3.0 | 30 | 49.5 |
| SL 15-2.5 | 15 | 2.5 | 37.5 | 37.5 |
| SL 20-2.5 | 20 | 2.5 | 50 | 82.5 |
Technical characteristics
| Average value of the modulus of elasticity in the longitudinal direction of the fibres in accordance with standard EN 2561 | 170 kN/mm2 |
| Minimum value of the modulus of elasticity in the longitudinal direction of the fibres in accordance with standard EN 2561 | ≥ 165 kN/mm2 |
| Tensile strength in the longitudinal direction of the fibres in accordance with standard EN 2561 | ≥ 2'900 N/mm2 |
| Average tensile strength value according to EN 2561 | 3'100 N/mm2 |
| Elongation at break in accordance with standard EN 2561 | ≥ 1,8% |
| Laminate width tolerance | - 1,5 / + 1,5 mm |
| Laminate thickness tolerance | - 0,03 / + 0,1 mm |
| Glass transition temperature in accordance with EN 61006 | ≥ 100°C |
| Density | 1'600 kg/m3 |
| Volumetric percentage of fibres | > 68% |
Advantages
- Control of reinforcement sizing
- Very low dead weight
- No corrosion
- Excellent fatigue behaviour
- Small footprint
Technical data

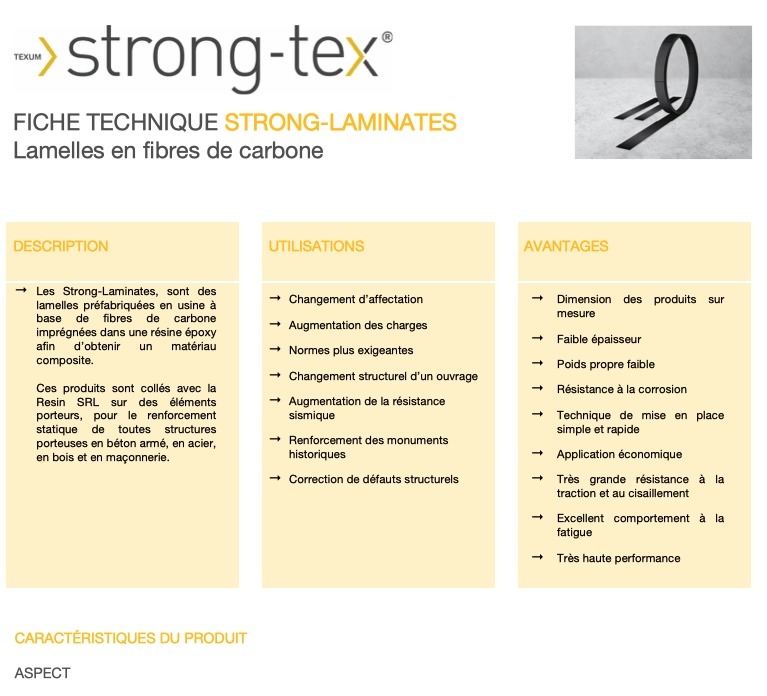

Find all the information about the Strong-Laminates solution in its technical data sheet.
If you wish, you can also download the technical data sheets for our solutions.
